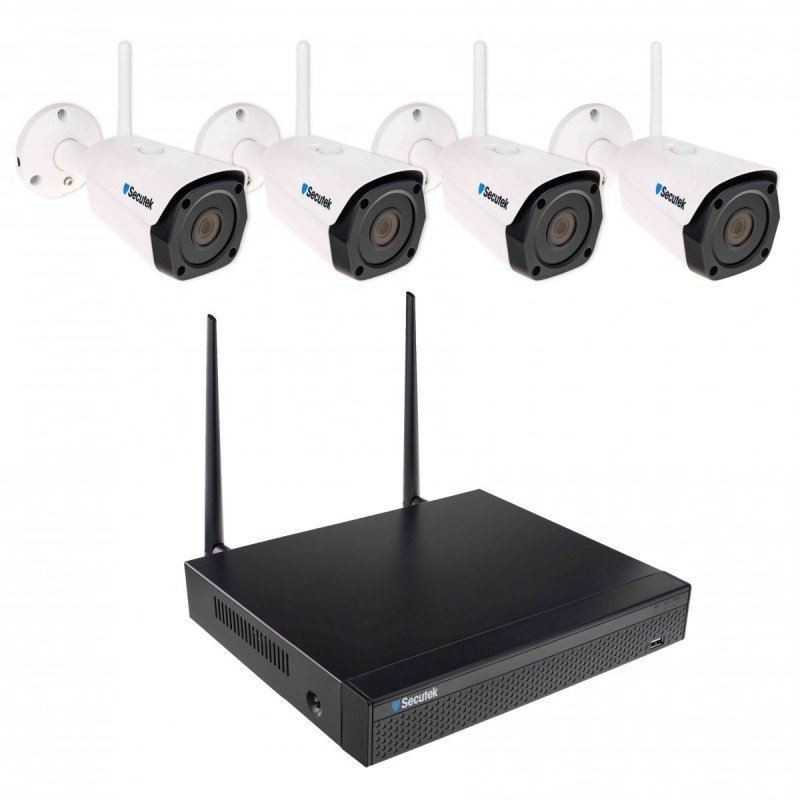

KIT WIFI 4CH -1NVR+4CAM WIFI2104DE4FK500
KIT WIFI 4CH -1NVR+4CAM WIFI2104DE4FK500
KIT WIFI 4CH -1NVR+4CAM WIFI2104DE4FK500
    KIT WIFI 4CH -1NVR+4CAM WIFI2104DE4FK500
    KIT WIFI 4CH -1NVR+4CAM WIFI2104DE4FK500
    KIT WIFI 4CH -1NVR+4CAM WIFI2104DE4FK500

KIT WIFI 4CH -1NVR+4CAM WIFI2104DE4FK500

LONGSE
VSKITLON00001
  SICUREZZA

Garantita su tutti gli acquisti

  SPEDIZIONI

Sicure tramite Corriere Espresso

WIFI2104DE4FK500

4CH 5MP WIFI Kits
  • 1x KT-NVR2104DE4W;
  • 4 x LBF30FK500W;
  • No Obstacles 300m Max;
  • 1 x 1m Net Cable, 1xUSB 2.0 Mouse;
  • 1xDC 12V 2A for WIFI NVR, 4xDC 12V 0.5A for WIFI IP Camera;

Descrizione

SPECIFICATION
Model NO. WIFI2104DE4FK500
Package
NVR 1x KT-NVR2104DE4W
Camera 4 x LBF30FK500W
WIFI Range No Obstacles 300m Max
Cable 1 x 1m Net Cable
Mouse 1xUSB 2.0 Mouse
Adaptor 1xDC 12V 2A for WIFI NVR, 4xDC 12V 0.5A for WIFI IP Camera
Weight 5.3kg/SET
Camera Model LBF30FK500W
Camera
Image Sensor 1/2.5″  High-resolution CMOS Sensor
Resolution 5MP
Effective Pixels 2608(H)*1952(V)
Compression H.264/H.264+/H.265/H.265+
TV System PAL/NTSC
Electronic Shutter Time Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
S/N Ratio ≥52dB
Scanning System Progressive
Video Output Wireless network
Reset Button Yes
LENS Type
Focus Length 3.6mm
Focus Control Fixed
Lens Type Fixed
Pixels 5M Pixels
Night Vision
Infrared LED 42µ x 2PCS
Infrared Distance 25M
IR Status Auto Control
IR Power On Auto Control
Network
Ethernet N/A
Protocol TCP/IP,ICMP,RTP,RTSP,RTCP
ONVIF N/A
P2P N/A
POE N/A
Main Stream 1 2592*1944@1-15fps(default resolution:2592*1944/frame rate:15fps/bit rate:1.8Mbps)
Main Stream 2 N/A
Main Stream 3 N/A
Sub Stream 1 1280*720@1-15fps(default frame rate:15fps/bit rate:1Mbps)
Sub Stream 2 N/A
Sub Stream 3 N/A
Tri Stream N/A
IE Brower N/A
Smart Phone N/A
Wireless
Antena 3dbi
Hotspot NO
Wi-Fi Wi-Fi(IEEE802.11b/g/n)
WIFI Range No obstacles 300m Max.
Camera Features
Day/Night Color/ B&W (IR-CUT )
Image Config Saturation/Brightness/Contrast /Sharpness, Mirror,  White Balance, FLK(Flicker Control)
Corridor Pattern N/A
ROI N/A
Defog  Mode YES
BLC YES
HDR N/A
WDR YES
Motion Detection Support
Privacy  Masking 3 Rectangular Zone
Recording Mode NVR
Language N/A
Interface
Audio N/A
Alarm N/A
SD Card Slot N/A
RS485 N/A
General
Housing Metal , IP67
Anti-cut Bracket YES
IR Cut Filter YES
Operation Temperature -10? ~ +50? RH95% Max
Storage Temperature -20? ~ +60? RH95% Max
Power Source DC12V±10%, 500mA
Dimension 186(W) x 75(H) x 71(D)mm
Weight 750g
Model NVR2104DEW
System
Main Processor ARM Cortex A7 Quad-core Processor
Operating System Embedded LINUX
Video
Input 4CH (3840×2160,2592×1944, 2048×1536, 1920×1080, 1280×960, 1280×720, etc)
Output 1 VGA, 1 HD
LONGSE
VSKITLON00001

Scheda tecnica

Codice Produttore
WIFI2104DE4FK500

Riferimenti Specifici

MPN
08704
