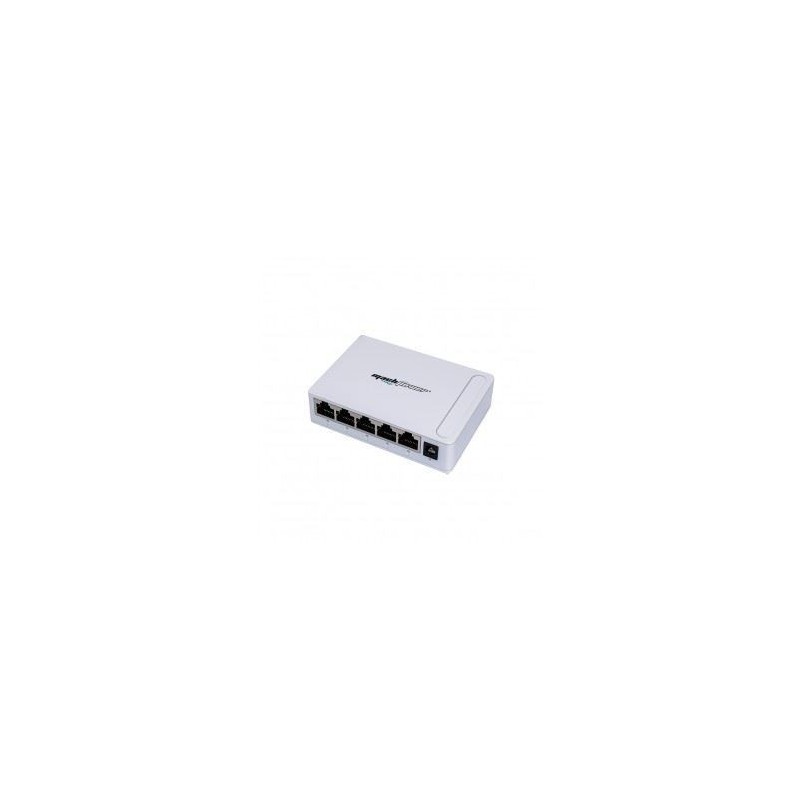

Y-SWITCH 5PT SW-UG5L-017P (GIGABIT)

SICUREZZA

Garantita su tutti gli acquisti

SPEDIZIONI

Sicure tramite Corriere Espresso

Descrizione
Dettagli del prodotto

5 ports Gigabit Ethernet switch with high performance and competitive price. It's a perfect way to extend your network structure.

FEATURES
• Compliant with the IEEE802.3 10BaseT Ethernet, IEEE802.3u 100BaseTX,IEEE802.3ab 1000BaseT specifications
• 5 port 10/100/1000Mbps TX Auto-Negotiation Ethernet Switch
• Full/Half-Duplex capability on each TX port (only support full duplex in 1000Mbps)
• Supports TP interface Auto MDIX function for auto TX/RX swap
• Automatic Source MAC Address Learning and Aging
• Supports up to 8K MAC addresses
• Up to 1,5 MB buffer
• Support Jumbo frame up to 9.216 bytes
• Supports Store & Forward architecture and performs
• Forwarding and filtering
• Broadcast Storming Filter function
• IEEE802.3x flow control for Full-duplex
• Back Pressure function for Half-duplex operation
• Supports to handle up to 1.522 bytes packet
• LED indicators for simple diagnostics and management
• Plug and Play

Standards	IEEE 802.3, IEEE 802.3u , IEEE 802.3ab
Access Method	CSMA/CD
Network Media	10BaseT= UTP Cat. 3 or higher
	100BaseTX= UTP Cat. 5 or higher
	1000Base-= Cat5 or Cat5e or higher UTP/STP
Topological Structure	Star
Transmission Method	Store and Forward
MAC Address Table	8K
Packet Filtering / Forwarding Rate	14880pps (10Mbps) per port
	148800pps (100Mbps) per port
	1488000pps (1000Mbps) per port
Built-in Buffer	1,25MB
Auto MDI/MDIX	Yes
LED Indicators	Power, Link/Activity, speed
Power	External Power Adapter
Operating temperature	0°to50°C
Storage temperature	-20° to 70° C
Operating Humidity	5% to 90 % non-condensing
Storage Humidity	5% to 90% non-condensing
Dimension	280mm(L) x 172mm(W) x 44mm(H)
Weight	1,6Kg
Certifications	FCC Part 15 Class A, CE Mark
